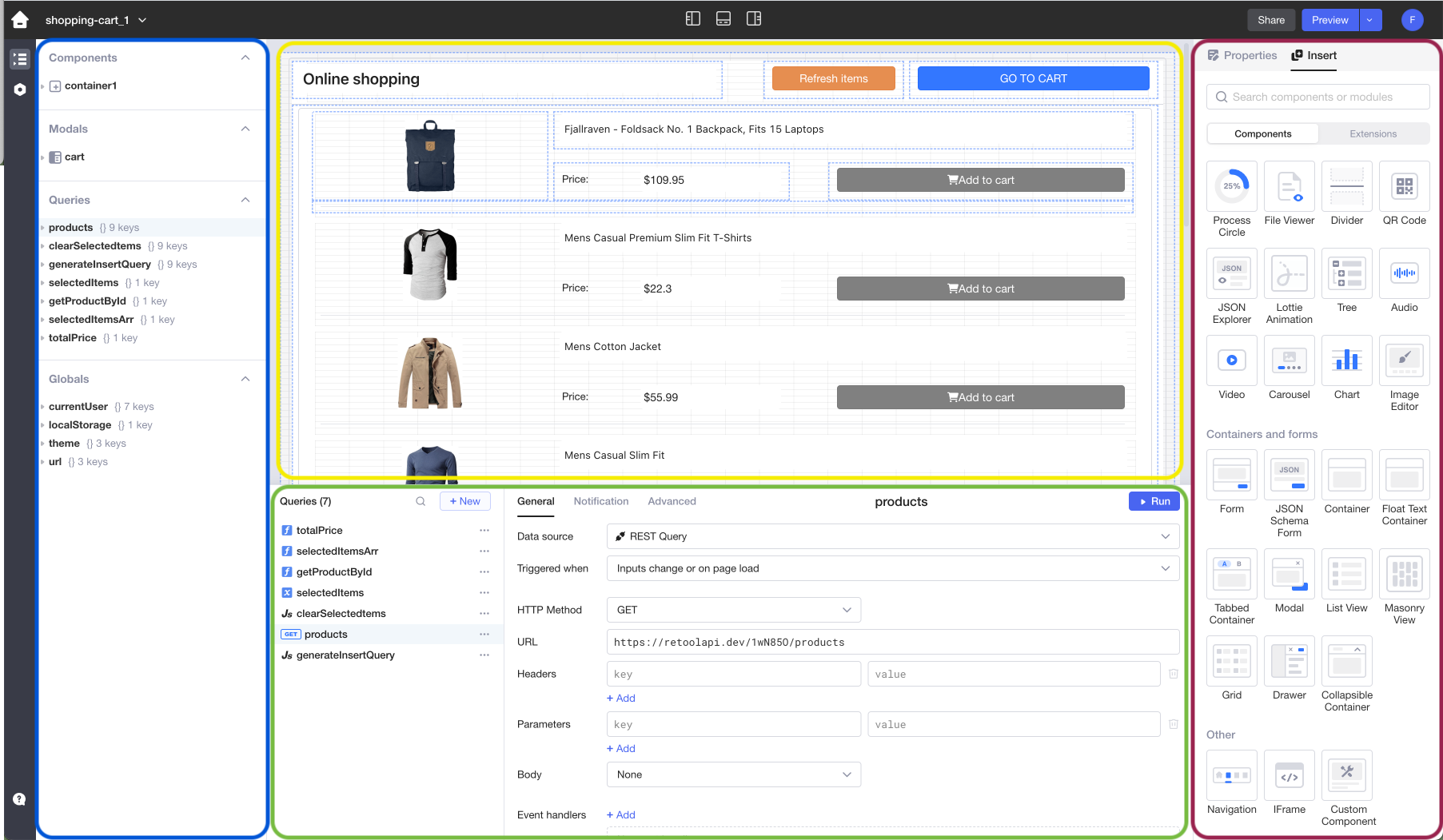

In OpenFlower, the Application Designer is where you assemble components, create queries to interact with data, and publish your apps. It consists of five areas:
Toolbar on top
Canvas (yellow)
Data browser (blue)
Query editor (green)
Component and property pane (red)

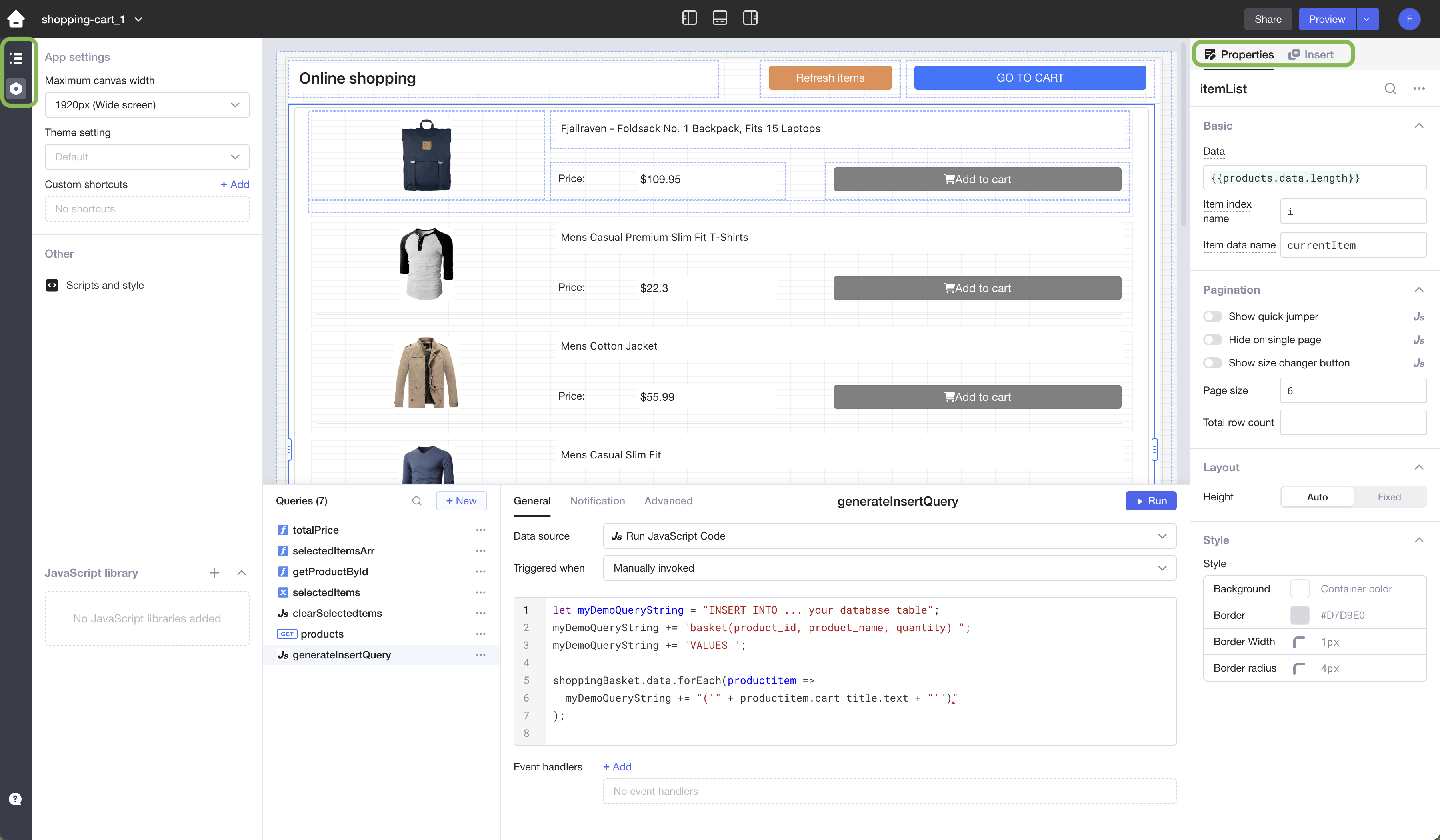

The left pane is switchable, so you can view the Data browser or App-wide settings for layout and page includes (Javascript and CSS). You can:
Set Canvas size
Manage included JavaScripts and CSS style
The right pane is switchable too and offers the searchable list of all Components that can get placed in your App. In the "properties Mode" you can see all customization details for the currently selected Component on the Canvas.
The Toolbar is made up of a top bar and a left sidebar.
On the top bar, you can:
Change the App name
Export to a JSON file
Control the visibility of the left and right panes as also the query editor (middle)
Share your App
Preview and deploy your App
Check the history versions on an App
On the left sidebar, you can:
Show or hide the Data Browser
Start tutorial for application designer
The canvas (yellow) at the center of the editor is where you design and see the overall UI. Drag and drop components onto the canvas. You can imagine it like a blank page at the beginning.

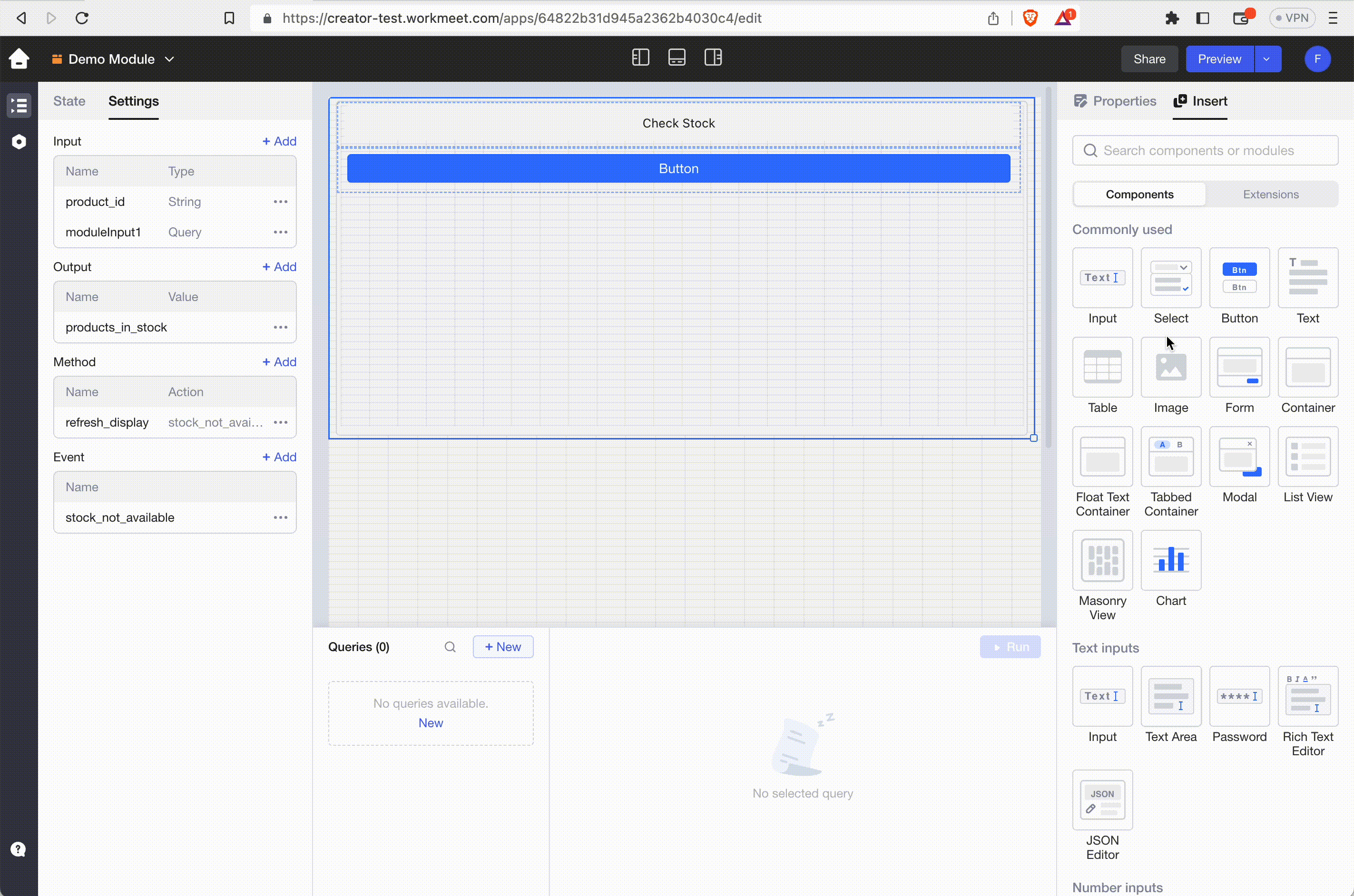

The canvas has an automatic, magnetic Grid system. Components will visually always snap to the nearest left and top grid line. This allows a fast but ordered layout of the Application.

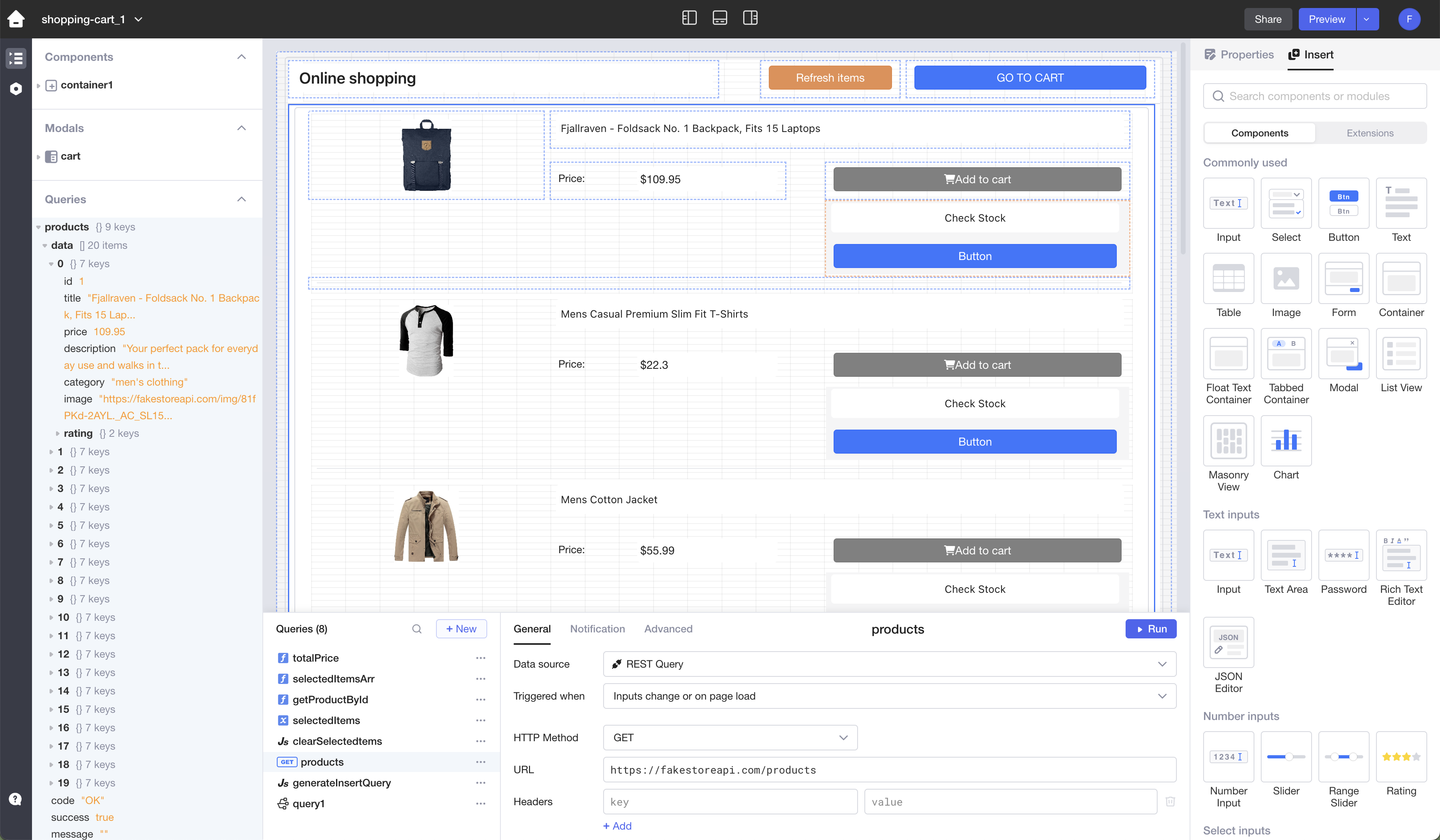

The data browser (blue) on the left pane contains Queries, Components, and Globals sections. Here you can inspect the data in a tree structure in real-time. For example, to check the returned data of a specific query or component, find its node in the belonging section and click to expand.
The query editor (green) is at the bottom and consists of two sections: query list (with Queries and Metadata tabs) on the left, and query settings ( with General, Notification, and Advanced tabs) on the right. Create queries to interact with data sources here.
Queries link data sources to your apps and perform CRUD (create, read, update, and delete) operations on data sources.

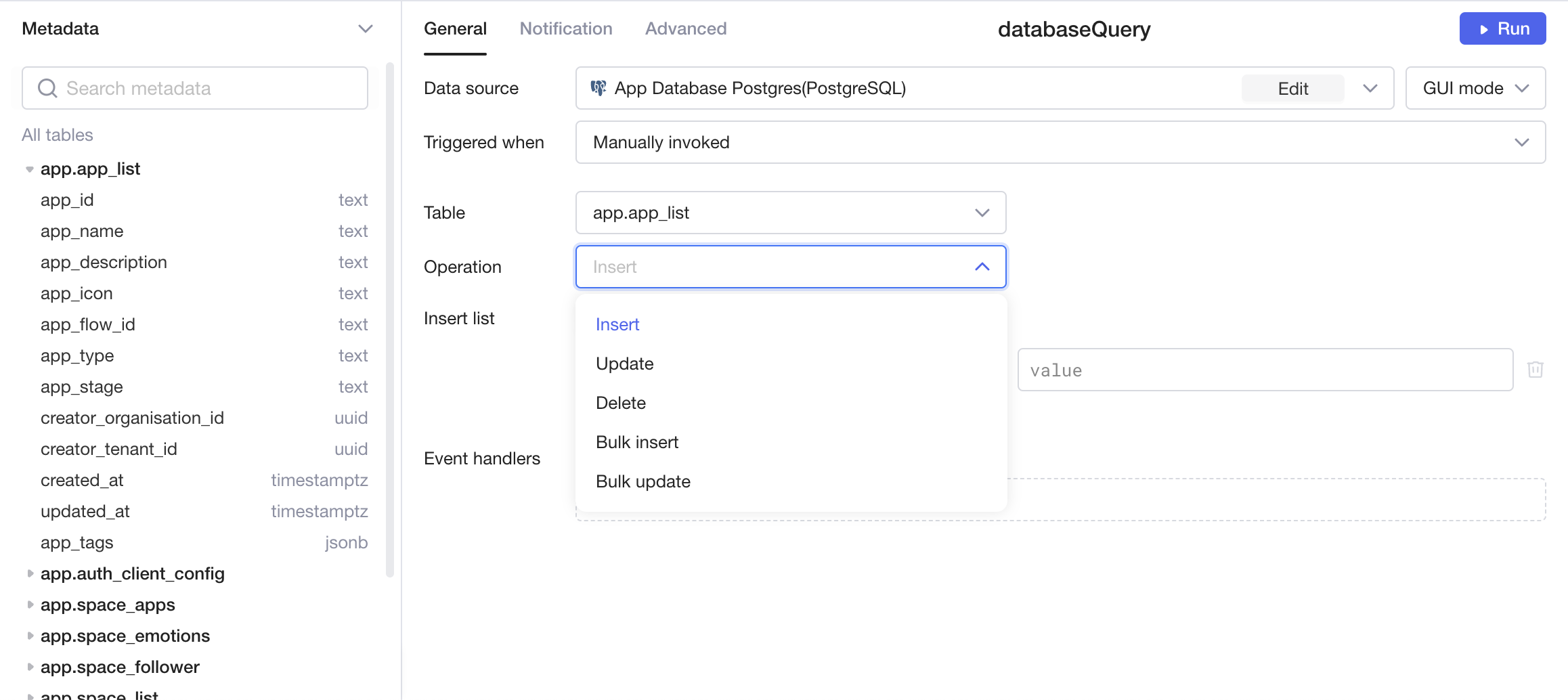

The query editor is flexible and adapts the options to build queries to the data source. You can compare SQL Database and OpenAPI queries for example.
The component and property pane (red) is located on the right of the window. Drag components onto the canvas from the Insert tab and edit the properties of the components in the Properties tab.
When a component is selected on the canvas, the Properties tab will be activated automatically and display the properties of that component.
You can influence the background color as also the horizontal amount of grid cells in the .
