# KeyCloak

### KeyCloak as Identity Provider

To use KeyCloak as an Auth Provider, you must install and maintain an own installation of KeyCloak. A docker installation is fast achieved.

<https://www.keycloak.org/getting-started/getting-started-docker>

In KeyCloak you have to set up first a "Realm". This is a tenant within KeyCloak. Select (or create) your Realm with the top left corner menu.

In your Realm, you can then create and configure a Client. We show here the most minimal configuration to enable Sign in and Sign up with KeyCloak for OpenFlower.

### Setup a KeyCloak Client

Choose a name and id for your Client.

<figure><img src="/files/Z89De2Pji9jnqE5GbsA2" alt=""><figcaption></figcaption></figure>

Make sure the "Standard Flow" is activated, as also "Client authentication" and "Authorization". Only when checked these options, KeyCloak will issue the needed Client-Secret.

<figure><img src="/files/F8xh8cFGTJ8vso6EJWu5" alt=""><figcaption></figcaption></figure>

Configure the OpenFlower redirect URLs.

{% hint style="info" %}
For the cloud, the "Valid redirect URI" is <https://prod-us1.openflower.org>
{% endhint %}

<figure><img src="/files/qawF9F8UOKecmXOkRjzp" alt=""><figcaption></figcaption></figure>

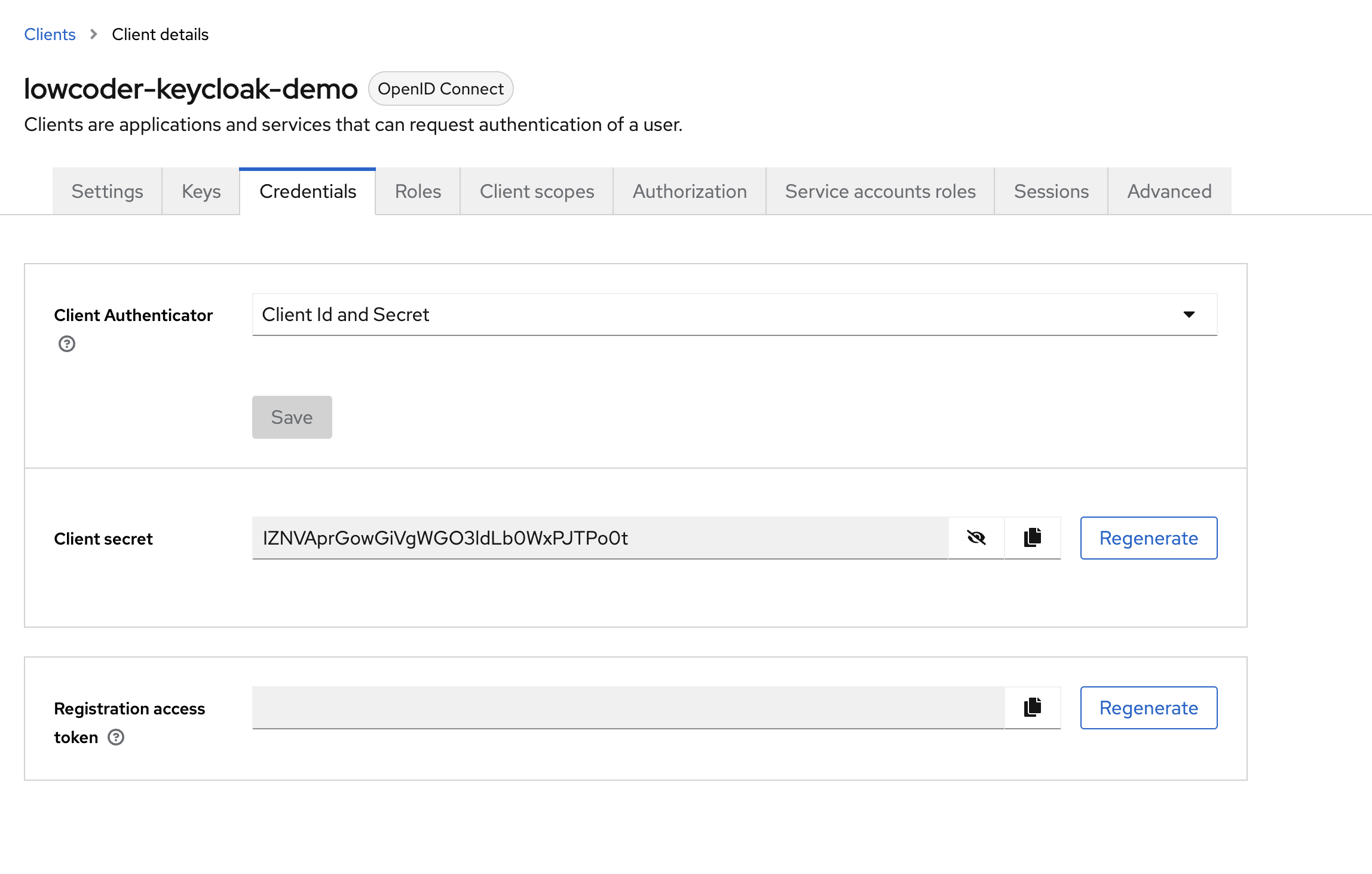

After the setup, you can now look for the generated Client-Secret.

<figure><img src="/files/idDVYp4hAhLodPqIUj12" alt=""><figcaption><p>copy the Client Secret for the setup of KeyCloak as Auth Provioder in OpenFlower</p></figcaption></figure>

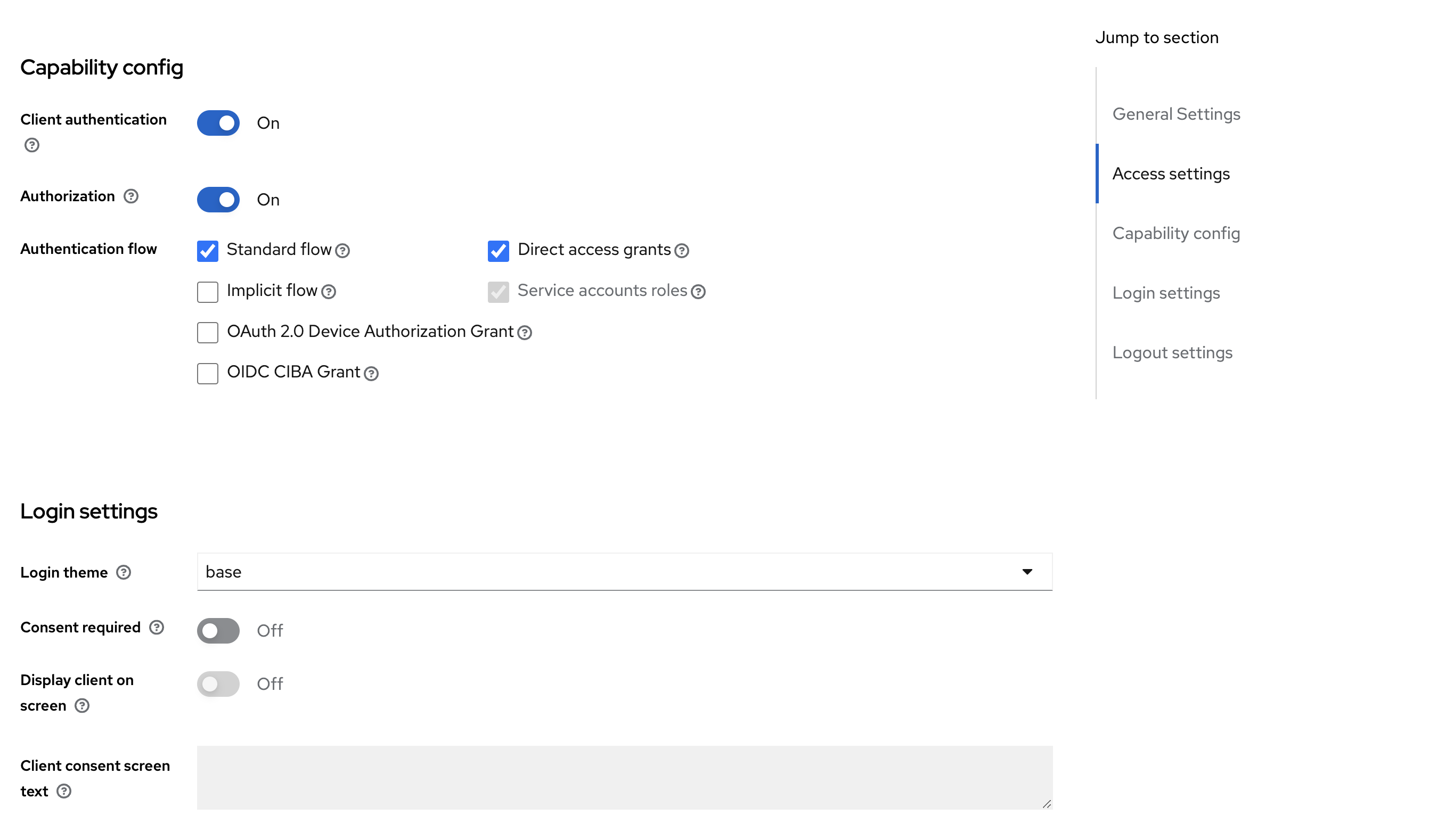

Check the Settings to make sure the right capabilities are activated...

<figure><img src="/files/Wrf4bGprvDiDgP989aqS" alt=""><figcaption></figcaption></figure>

### KeyCloak as OpenFlower Auth Provider

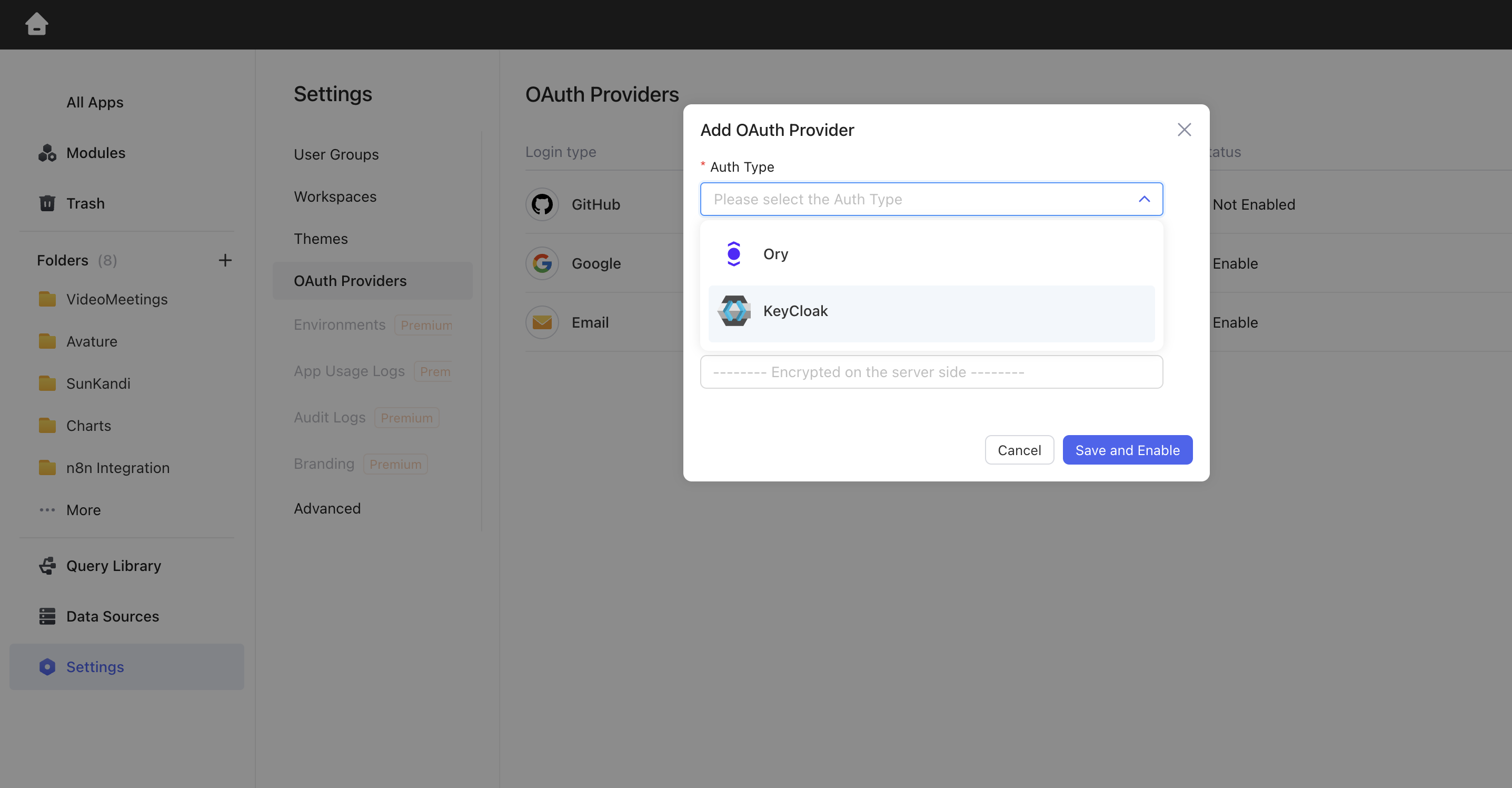

in OpenFlower, go to Settings > OAuth Provider and select "KeyCloak" in the "Add OAuth Provider Dialogue"

<figure><img src="/files/3aBhK4c6pHrhBHKix5Bz" alt=""><figcaption></figcaption></figure>

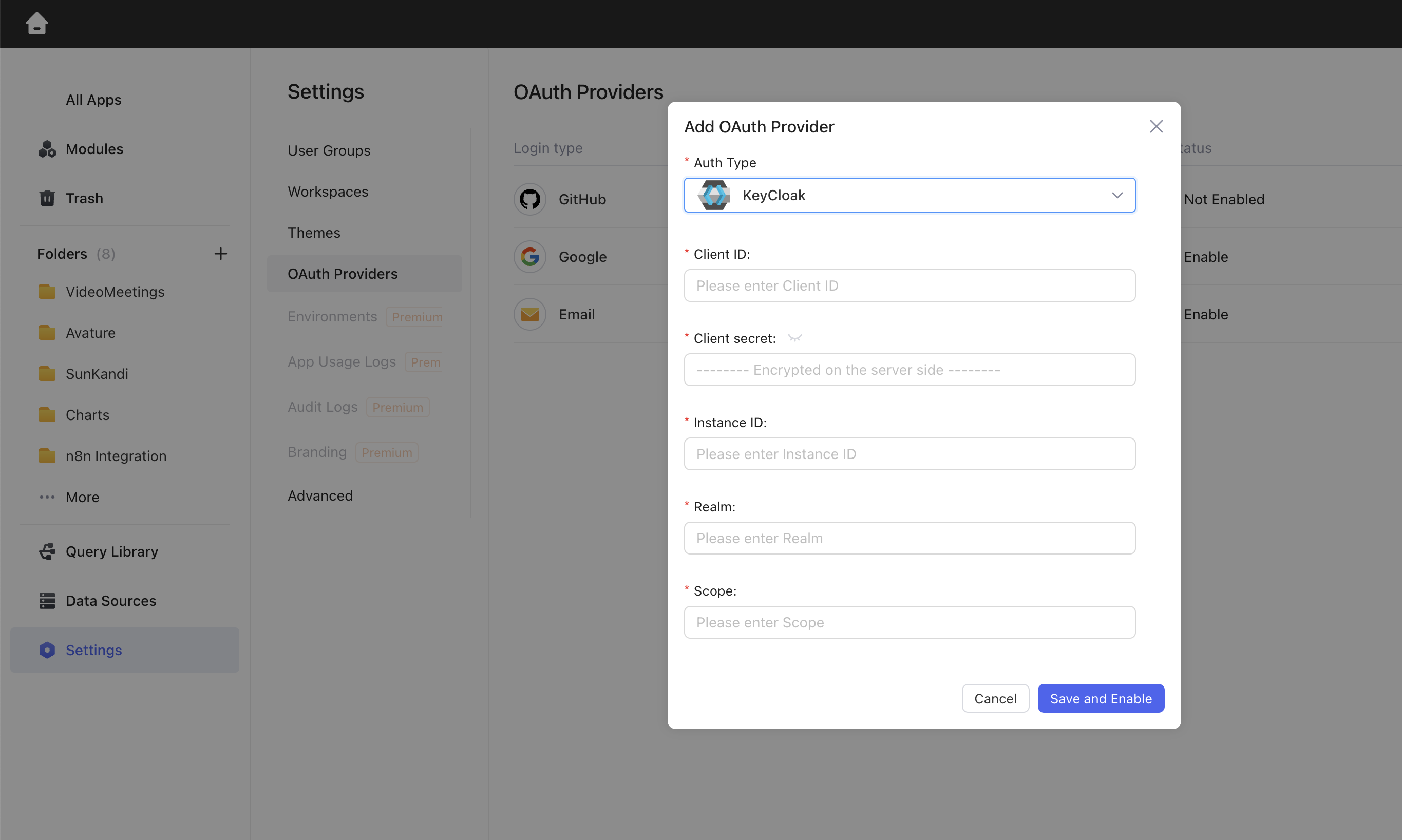

Now you can enter all settings for KeyCloak

{% hint style="info" %}
Instance ID is the Base URL of your KeyCloak Installation
{% endhint %}

<figure><img src="/files/tz3gn3soPA0WwKs3tMOP" alt=""><figcaption></figcaption></figure>

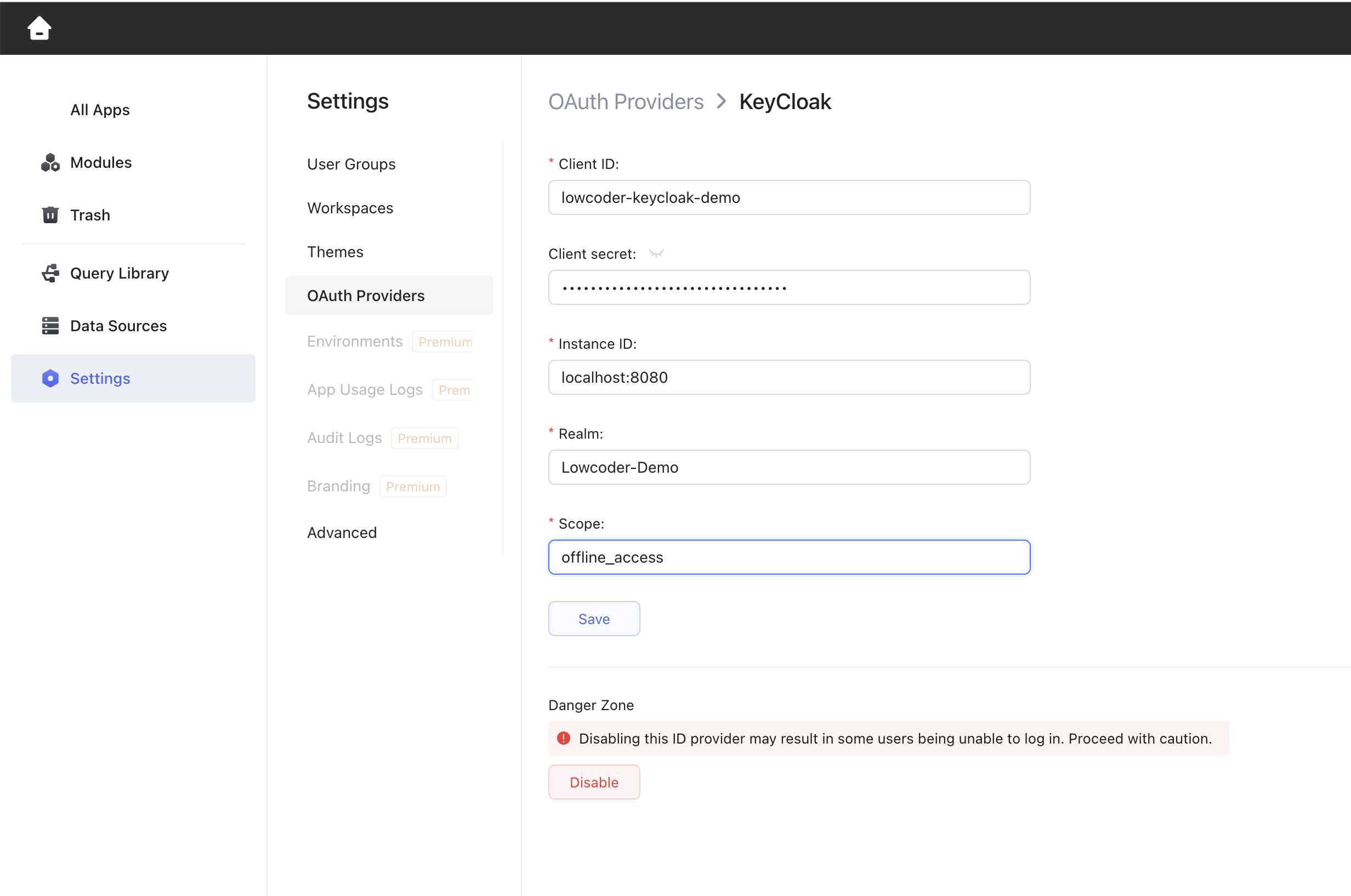

You can also change settings later.

<figure><img src="/files/DVL4xdCQGaumYqkgJ419" alt=""><figcaption></figcaption></figure>

{% hint style="warning" %}
The minimal scope to setup is "offline\_access openid".
{% endhint %}

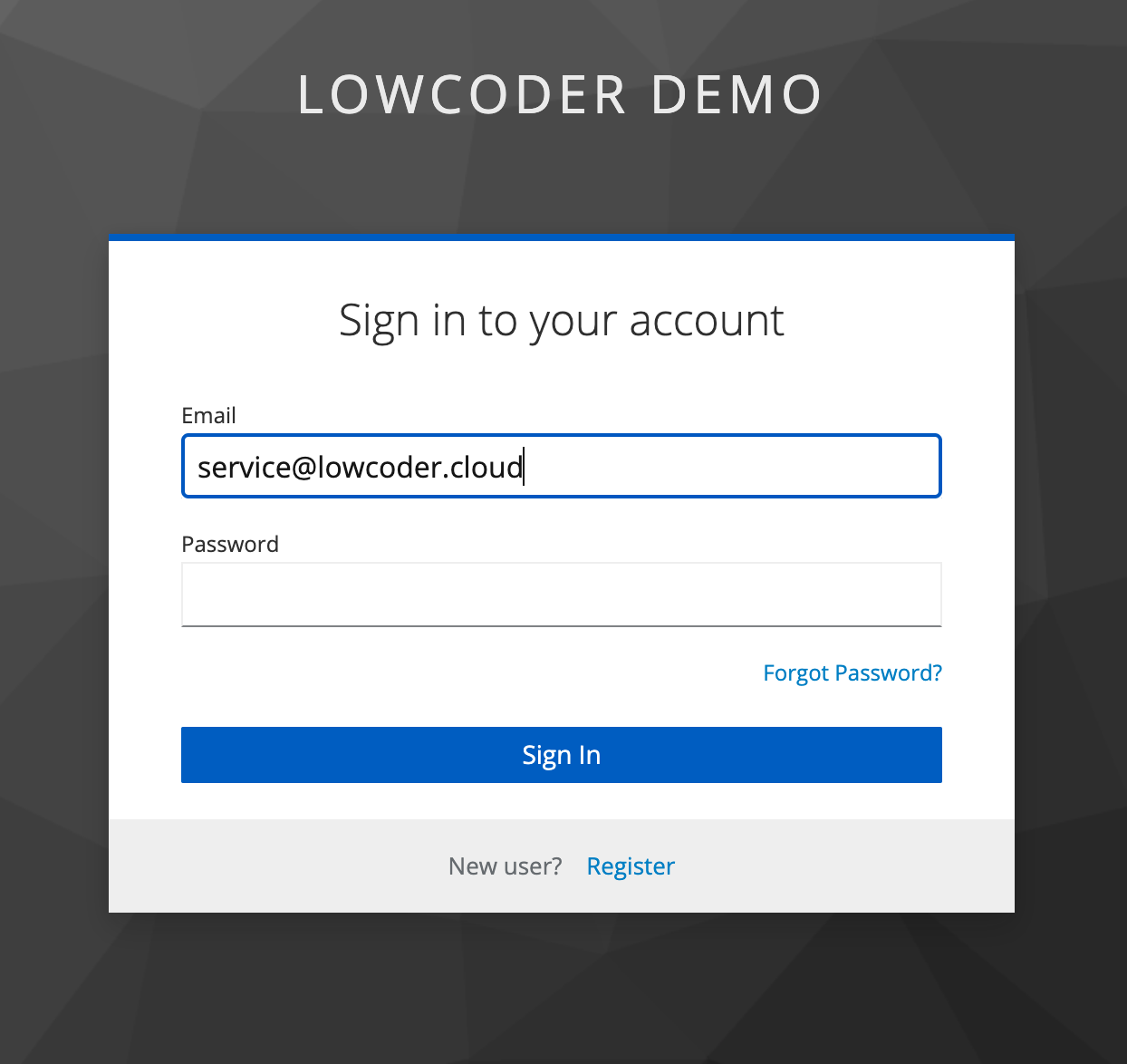

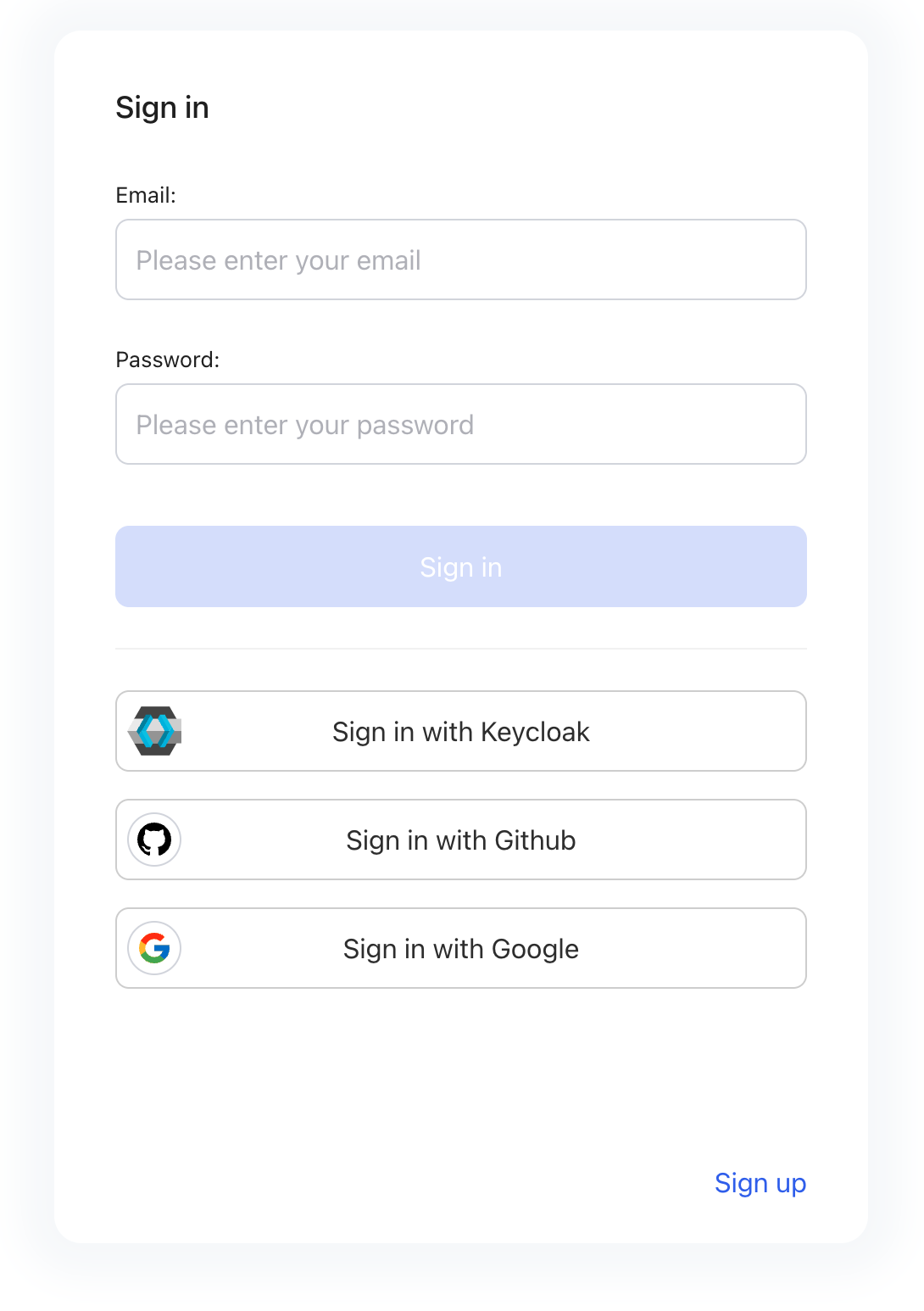

Thats it! Now you can use KeyCloak to offer your Users to Sign in and Sign up with KeyCloak.

<figure><img src="/files/nBlXdvTZZzK4ATY9RGWu" alt=""><figcaption></figcaption></figure>

<figure><img src="/files/zvVxVe65sIrErgpxorUH" alt=""><figcaption></figcaption></figure>


---
