Generic OAuth Provider

Since OpenFlower v2.4.0, a generic OAuth Provider has been introduced. The goal is to cover as many OAuth providers as possible without special implementation but give you, as an Admin, the freedom to connect to any OAuth Provider using a flexible configuration.

As communicated and voted by the community, we introduced the functionality in v2.4.0 but are still optimizing it, based on your feedback. Latest by OpenFlower v2.5.x this function is stable. (We expect anyhow already before that version a stable function of it.)

OAuth Providers are configured individually per Workspace.

The configuration has three parts:

  • Meta-Data

  • OAuth Provider Configuration

  • Information Mapping

Setup a generic OAuth provider

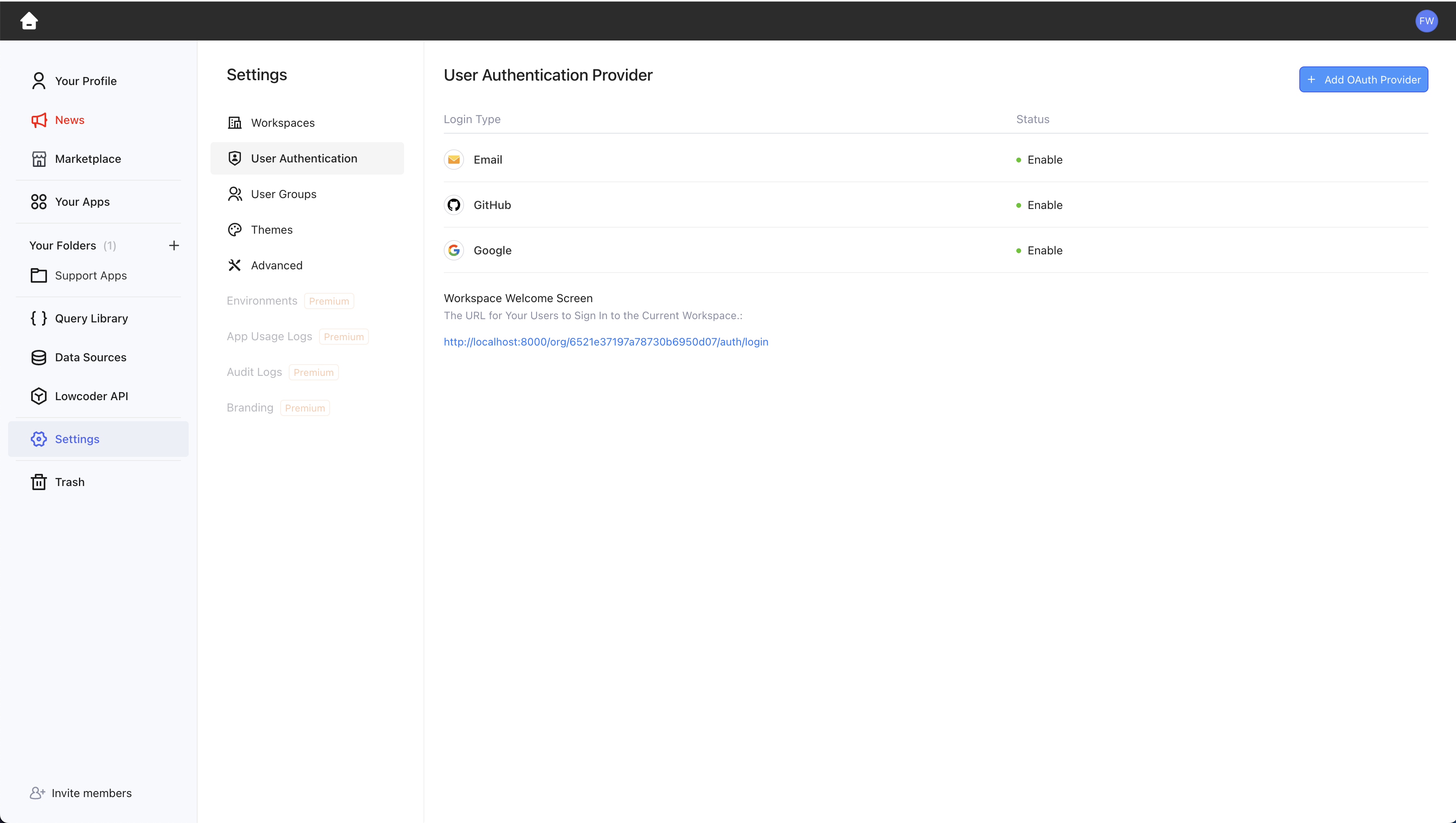

As the Admin of your Workspace, go to Settings > User Authentication. Here, you will find a List of your configured User Authentication Providers.

Overview of configured Aouth Providers for your Workspace

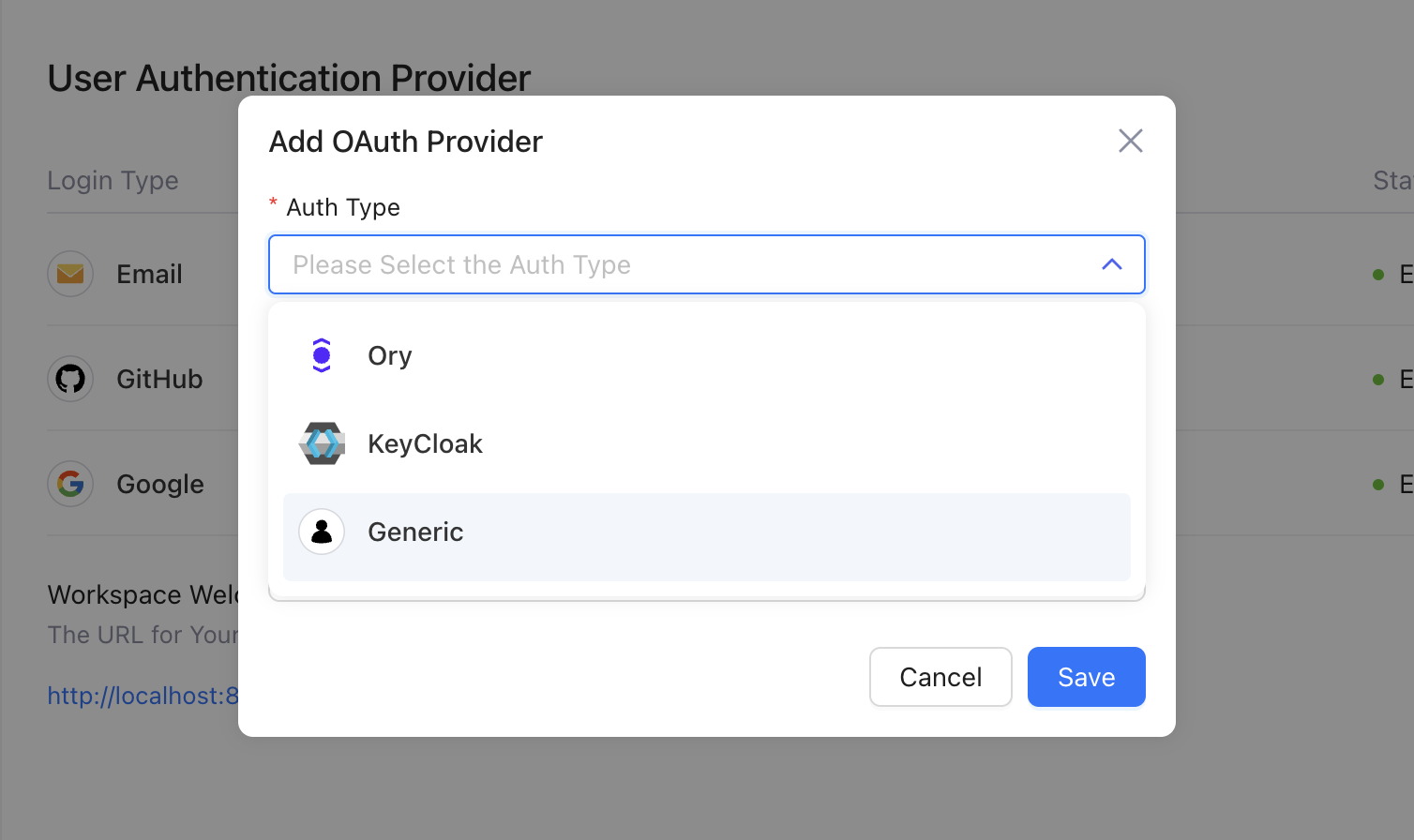

Now, you can use the button in the upper right corner to add a new OAuth Provider. Select "Generic".

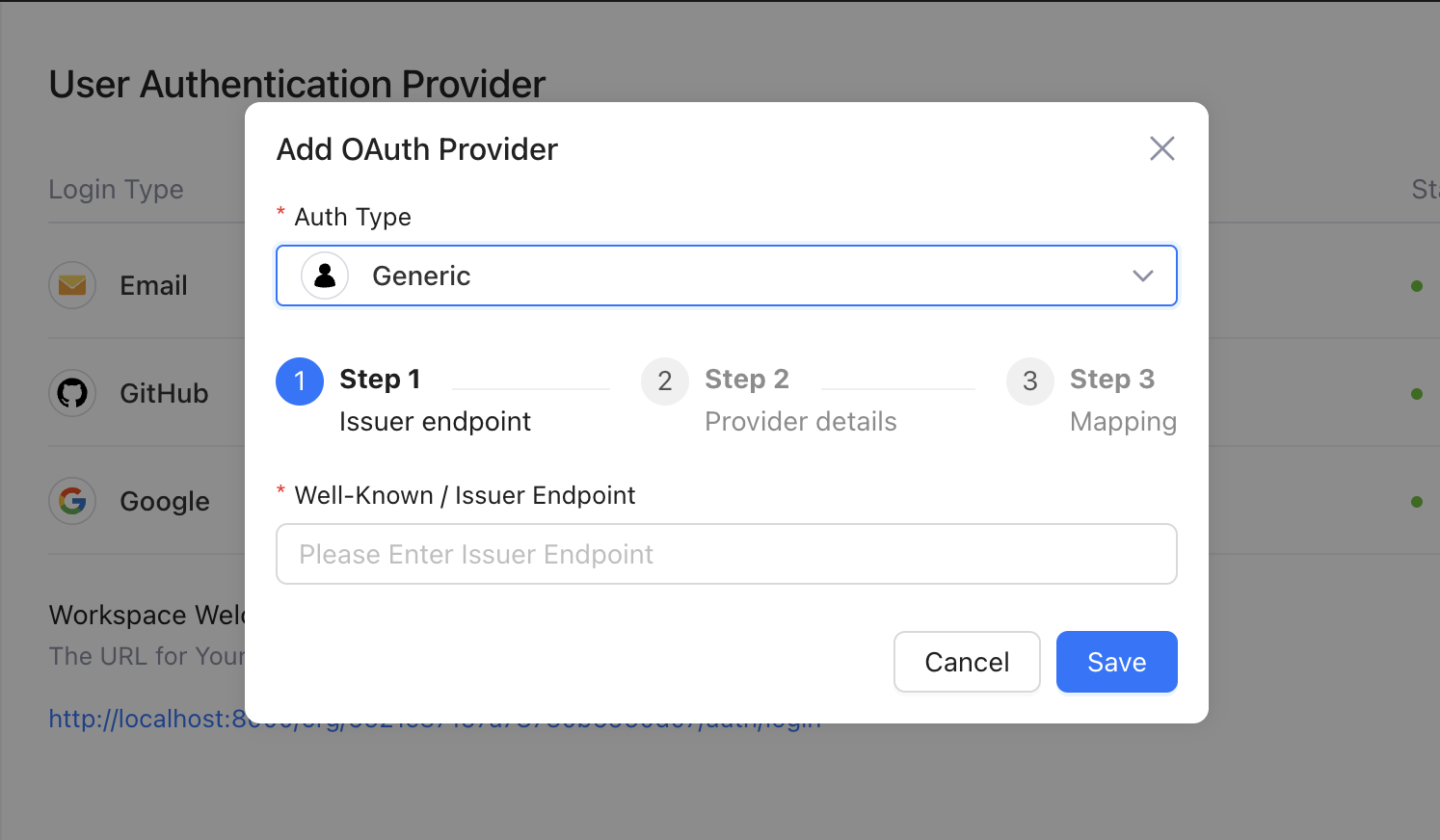

.well_known URI

The .well-known/openid-configuration URI is specifically part of the OpenID Connect (OIDC) standard. If a provider supports OpenID Connect, this endpoint provides a JSON document with the configuration details for OAuth and OIDC operations. OpenFlower will try to use this configuration data and will fill out the standard OAuth Provider Configuration fields as well as possible in the next screens of the Generic OAuth Provider Configurator.

Enter your Well Known URI to auto-fill the configuration in Step 2

Here are some popular services and their OpenID configuration Endpoints

Google

https://accounts.google.com/.well-known/openid-configuration

Facebook

https://www.facebook.com/.well-known/openid-configuration

Microsoft

https://login.microsoftonline.com/common/v2.0/.well-known/openid-configuration

LinkedIn

https://www.linkedin.com/oauth/.well-known/openid-configuration

Apple

https://appleid.apple.com/.well-known/openid-configuration

Amazon Cognito

https://cognito-idp.{region}.amazonaws.com/{userPoolId}/.well-known/openid-configuration

Salesforce

https://login.salesforce.com/.well-known/openid-configuration

Dropbox

https://www.dropbox.com/.well-known/openid-configuration

PayPal

https://www.paypal.com/.well-known/openid-configuration

Slack

https://slack.com/.well-known/openid-configuration

Keycloak

https://{yourKeycloakDomain}/auth/realms/{yourRealm}/.well-known/openid-configuration

Okta

// Self-Host
https://{yourOktaDomain}/.well-known/openid-configuration
// Cloud (domain depends on the region)
https://{yourApp}.okta-emea.com/.well-known/openid-configuration

Auth0

// Self-Host
https://{yourAuth0Domain}/.well-known/openid-configuration
// Cloud
https://{yourApp}.auth0.com/.well-known/openid-configuration

Ory

// Self-Host
https://{yourOryHydraDomain}/.well-known/openid-configuration
// Cloud
https://{yourApp}.projects.oryapis.com/.well-known/openid-configuration

Authentik

https://{yourAuthentikDomain}/application/o/.well-known/openid-configuration

IBM Security Access Manager (ISAM)

https://{yourISAMDomain}/mga/sps/oauth/oauth20/.well-known/openid-configuration

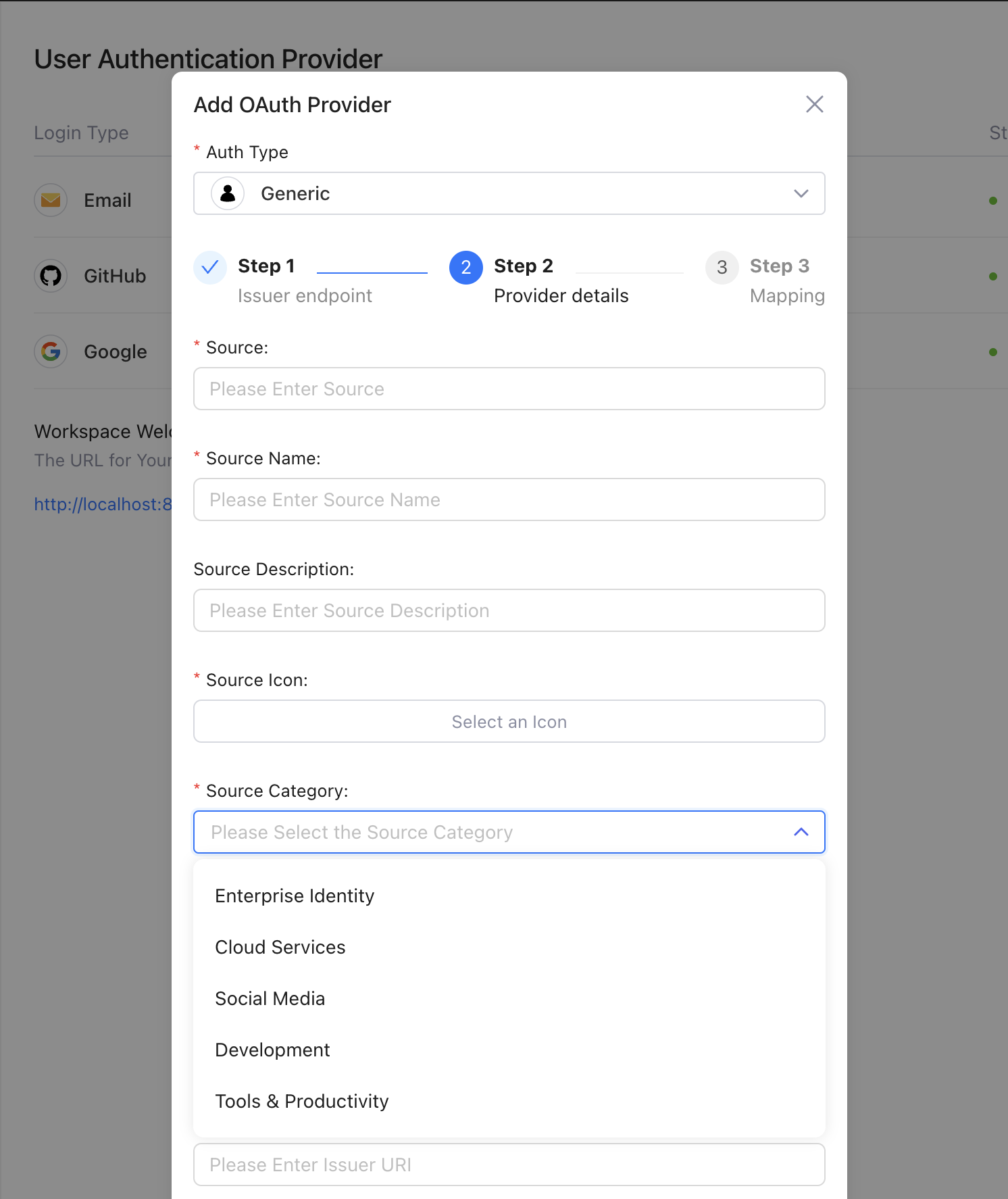

OAuth Source Meta-Data

Meta Data describes the Auth Source, allowing you to influence the visual representation of the OAuth Provider in the Sign In / Sign Up screen.

Enter a Displayed Name, Category, Icon and a Description

From OpenFlower v2.4.1, the field "Source" will be hidden and filled out automatically.

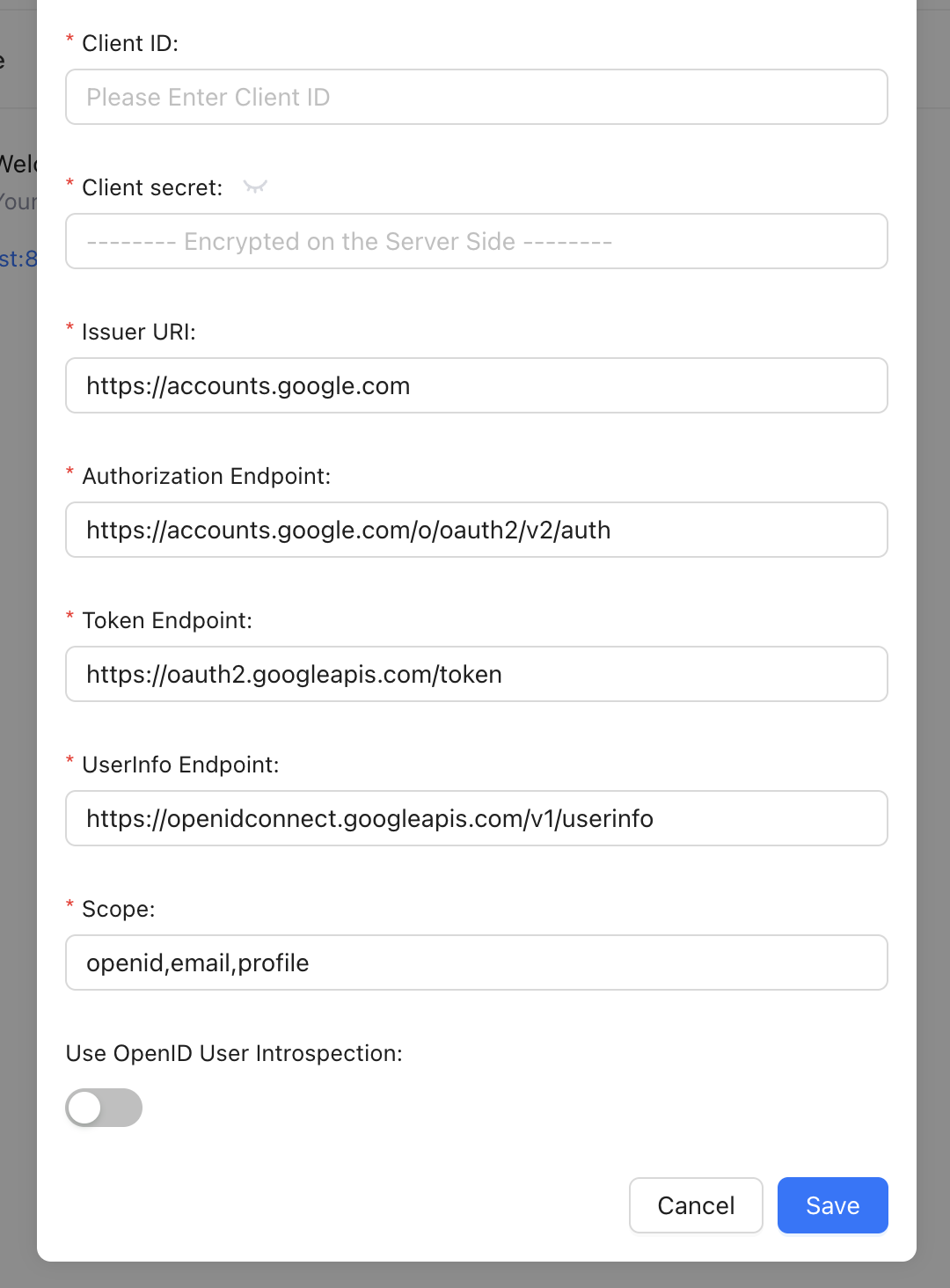

OAuth Configuration

In Step 2, you can now set up the configuration Data for your OAuth Provider. We introduced this in v2.4.0, and the screen will surely be extended with features in the upcoming versions.

Some providers do only support OAuth - but not (yet?) OpenID. This means that the User Introspection Endpoints /userinfo are not available. For this case you can activate or deactivate this Introspection. (This function comes into effect at OpenFlower v2.4.1)

Provider-Side Configuration

At your IDM you would need to prepare an OAuth Client resp. a OAuth Client Application. There are multiple settings.

  • Redirect URL. Here you enter your domain of your installation like http://localhost:3000 or https://prod-us1.openflower.org

  • Scopes: You should set the following Scopes if possible. offline_access and profile are important.

    • openid

    • offline_access

    • email

    • profile

  • Supported OAuth2 flows: To handle User-Logins you need to activate the Authorization Code Flow. Also you may need to activate the Refresh Token possibility.

  • Client authentication mechanism: Here, you can set HTTP Body

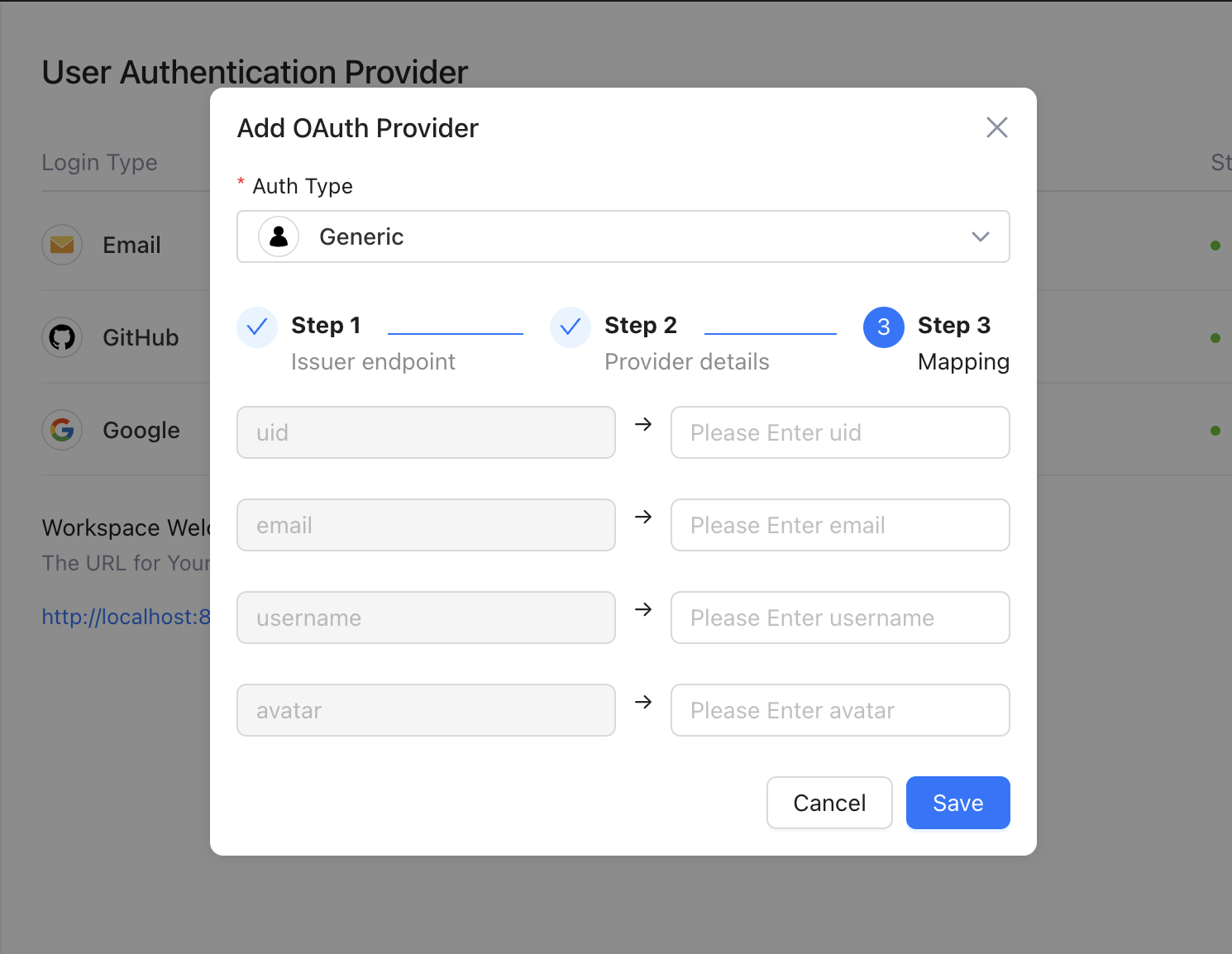

OAuth Data Mapping

We introduce the possibility of mapping Data from OAuth providers to OpenFlower. We just started it in v2.4.0, and in this version, we enabled 4 attributes.

  • UID (The User-ID in the IDM System)

  • Email (The Email Address of the User in the IDM System)

  • Username (The Name of the User)

  • Avatar (The profile picture of the User)

OData Mapping

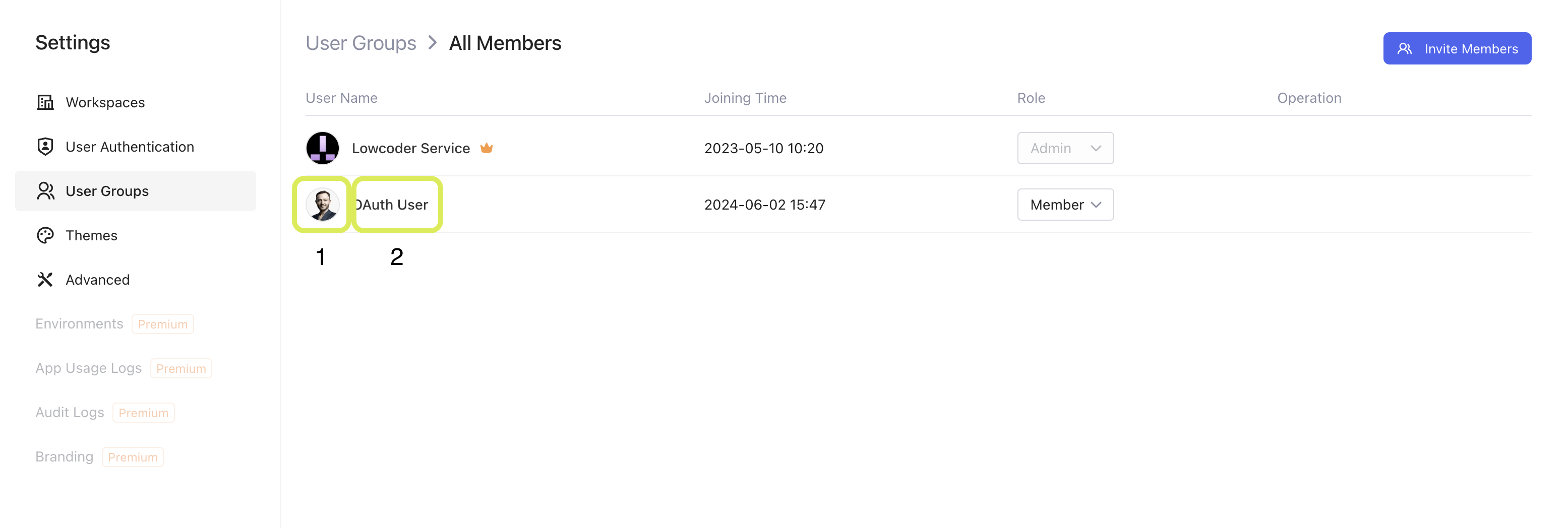

The second screen shows how the Avatar and Username come into effect after the Mapping.

In future versions of OpenFlower, we will also support Attribute Matching of Token Claims to User Groups and Roles.
